Robotics

Automated and precise calibration of industrial robots and cobots

Accuracy and automated processes are a top priority in robotics, especially in all manufacturing processes. CAPTRON offers hardware and software solutions for industrial robots and cobots in various applications, such as gluing, welding and dispensing. Our TCP measurement technology is characterized by precision and reliability and ensures maximum efficiency in the calibration and monitoring of rotationally symmetrical robot tools.

Minimization of downtimes
An automatic control and calibration process reduces programming effort and production interruptions.
Increased accuracy and quality
Regular inspection and calibration ensures maximum precision when measuring and calibrating the robot tools and makes reproducibility of 0.01 mm possible.
Reduction of rejects and rework
Precise calibration minimizes errors, collisions and deviations in the production process, resulting in fewer rejects and rework.
Reliable tool change
After each tool change, the robot can run through a quick calibration routine to ensure that the tool has been inserted correctly and properly.
Fast and precise calibration
It only takes a few seconds to check whether the current TCP is within the tolerance range. Automatic recalibration helps to avoid time-consuming manual recalibration.

Quick Links

Increased accuracy and quality

Regular inspection and calibration

Regular TCP checks and calibration ensure the highest precision of robot applications.

Reduction of rejects and rework

Minimizes errors, collisions and deviations

Accurate calibration minimizes errors, collisions and deviations in the production process, reducing rejects and rework.

Minimization of downtimes and maintenance

Automatic inspection and calibration process

An automatic inspection and calibration process reduces production interruptions.

Simplified programming of TCP measurement technology

Dispensing needle, adhesive nozzles and pipettes
Welding rod
Soldering tools
Plasma nozzles
Drilling and milling tools

CAPTRON develops software solutions with a focus on ease of use and user-friendliness that enable fast and seamless integration of TCP measurement technology. This significantly simplifies and accelerates the programming of industrial robots and cobots.

If the software detects a minimal deviation from the tool center point, a complete tool measurement is carried out in less than 30 seconds and the corrected tool coordinates are transferred directly to the controller.

Regular checks and automated recalibration enable a repeat accuracy of 0.01 mm for robot applications.

By accepting the cookies (cookiebot icon in the left corner) and watching the video, you agree that your data will be transmitted to vimeo / YouTube and that you have read the privacy policy.

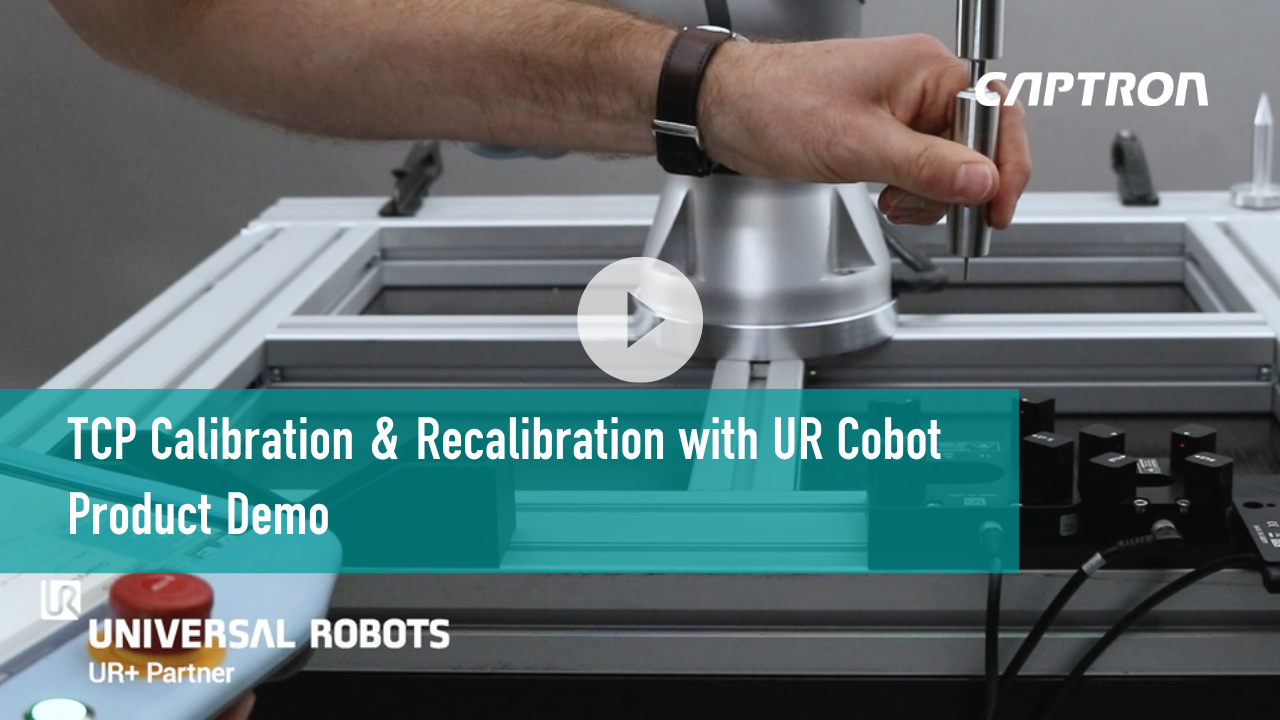

Calibration process with TCP software for Universal Robots

After each tool change, the cobot runs through a quick calibration routine to ensure that the tool has been inserted correctly. It only takes a few seconds to check whether the current TCP is within the tolerance range. The automatic recalibration avoids manual reteaching.

Minimal deviations in the tool data are automatically transferred to the robot and corrected. In the event of major changes, the cobot stops and the operator must confirm the update of the tool data.

More about the URCap software solution
