AH4-1X9/CPM08

Description

Mounting support for CHT4 and CHT9

Mounting support made of anodized aluminium
Stainless steel option

APPLICATION: BUILDING TECHNOLOGY | PLANTS & MACHINES

Downloads AH4-1X9/CPM08

csm_CAPTRON-Thumb-SENSORswitches-Catalog_be86d76aeb

SENSORswitch product catalog

SENSORswitches

+ Download DE
+ Download EN
+ Download CN
+ Download PL

Service and Support

Request a quote

Download center

Technical support

Product Images

AH4-9-1X9-CPM08_pic1

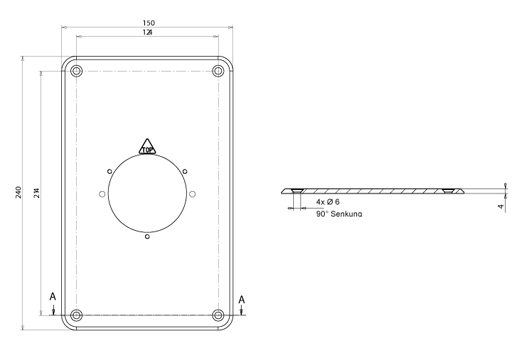

Technical Drawings

AH4-1X9-CPM08_drawing

Housing colors

Housing anodized aluminium

Specifications

Housing material

Aluminium (AL)

Suitable Accessories

CAPTRON-SENSORswitches-CHT9-G-Glastaster

CHT9-G

Ideal for pharmaceutical and medical areas

Ø 100 mm total diameter
Adhesive mounting
79-80 mm mounting hole
5 mm height

APPLICATION: BUILDING TECHNOLOGY | INDUSTRIAL AUTOMATION

CAPTRON-Accessoires-Mounting-Support-Connection-Cable-M8

Cable M8

M8 cable for sensor connection

Straight or angled connector
Different lengths are available
Different numbers of cores are available
Screw or snap-in mounting

APPLICATION: TRAFFIC & TRANSPORT | INDUSTRIAL AUTOMATION
