Cable M12

Description

M12 cable for sensor connection

  • Straight or angled connector
  • Different lengths are available
  • Different numbers of cores are available
  • Screw mounting


APPLICATION: TRAFFIC & TRANSPORT | INDUSTRIAL AUTOMATION

  • Screwed plug is waterproof in case of temporary submission - IP67
  • UL-certified
  • Suitable for drag chains
  • High resistency against oils, coolants and lubricants as well as emulsions

Downloads Cable M12

Product Images

CAPTRON-Accessoires-Mounting-Support-Connection-Cable-M12
CAPTRON-Accessoires-Mounting-Support-Connection-Cable-M12-Eck

Housing colors

  • RAL9017-VerkehrsschwarzBlack

Specifications

Size M12
Wire count 3-pole
4-pole
5-pole
6-pole
7-poles (Pole 8: Shield)
8-pole
Length 2m
5m
10m
Mounting cable gland
Jacket material PUR (halogen free)
Operating temperature -25°C…+80°C

Suitable Accessories

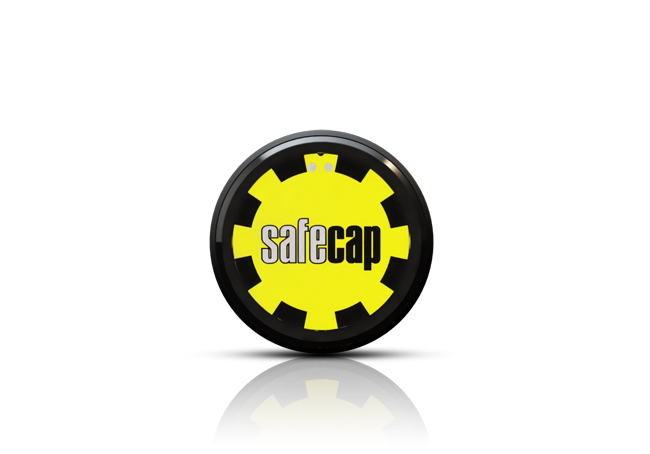

CAPTRON-Two-hand-control-SC30

SC30 (Single Channel)

Can be used as a two-hand control in conjunction with an approved evaluation unit.

  • Ø 50 mm sensing area
  • Installation via Ø 22.5 mm mounting hole
  • Compatible with Siemens evaluation units 3SK1 Advanced, 3RK3 MSS, Simatic F-CPU
  • TÜV SÜD tested (EN ISO 13849-1, EN ISO 13851)


APPLICATION: PUNCHING | PRESSES

CAPTRON-Two-hand-control-SC30

SC30 (Dual Channel)

Can be used as two-hand control in conjunction with a safety relay.

  • Ø 50 mm switching surface
  • Installation via standard Ø 22.5mm mounting hole
  • Compatible with MCR225 and PILZ PNOZ 6s
  • Certified by TÜV SÜD (EN ISO 13849-1, EN ISO 13851)


APPLICATION: PUNCHING | PRESSES

CAPTRON-two-hand-safety-control-SC4-SCA

SCA4

safeCAP switch A separate

  • Ø 63 mm switch surface
  • Mounting Ø 45 - 59 mm
  • Compatibe with mit MCR-225 safety relay
  • Type III C certified according to DIN EN 13851



APPLICATION: PUNCHING | PRESSES
