CHT7-2 (Standard)
Description
Single-sided operation inside
Ideal for printed glass surfaces or wall mounting
- Ø 63 mm switch surface
- Adhesive mounting
- 14 mm height inside
- Profile angle 90°
APPLICATION: TRAFFIC & TRANSPORT | BUILDING TECHNOLOGY
- Customization
Symbols and housing colors - TSI-PRM conform
Pictograms and braille available
Optical feedback through LEDs
No operation force needed - 100 % water and oil-proof - IP69K
Sensor is completely sealed in cast resin - Optional
Tactile feedback (vibration)
Downloads CHT7-2
![csm_thumb-CAPTRON-certificate-of-compliance-CSA_91d3ba7702 csm_thumb-CAPTRON-certificate-of-compliance-CSA_91d3ba7702](/fileadmin/_processed_/d/7/csm_thumb-CAPTRON-certificate-of-compliance-CSA_91d3ba7702.jpg)
![csm_CAPTRON-Thumb-SENSORswitches-Catalog_be86d76aeb csm_CAPTRON-Thumb-SENSORswitches-Catalog_be86d76aeb](/fileadmin/_processed_/2/8/csm_CAPTRON-Thumb-SENSORswitches-Catalog_be86d76aeb.jpg)
![csm_CAPTRON-thumb-set-configuration-manual_bd65855eeb csm_CAPTRON-thumb-set-configuration-manual_bd65855eeb](/fileadmin/_processed_/e/2/csm_CAPTRON-thumb-set-configuration-manual_bd65855eeb.jpg)
![csm_thumb-CAPTRON-certificate-ece-r118_62db300f72 csm_thumb-CAPTRON-certificate-ece-r118_62db300f72](/fileadmin/_processed_/d/6/csm_thumb-CAPTRON-certificate-ece-r118_62db300f72.jpg)
![csm_CAPTRON-Thumb-Redesign-CHT7-Flyer_cb8208f1f1 csm_CAPTRON-Thumb-Redesign-CHT7-Flyer_cb8208f1f1](/fileadmin/_processed_/5/9/csm_CAPTRON-Thumb-Redesign-CHT7-Flyer_cb8208f1f1.jpg)
![csm_CAPTRON-Thumb-SENSORswitches-Technical-Dossier_ef7650af01 csm_CAPTRON-Thumb-SENSORswitches-Technical-Dossier_ef7650af01](/fileadmin/_processed_/5/a/csm_CAPTRON-Thumb-SENSORswitches-Technical-Dossier_ef7650af01.jpg)
![csm_CAPTRON-Thumb-Certificate-SENSORswitches-EN50155_011ae68f3e csm_CAPTRON-Thumb-Certificate-SENSORswitches-EN50155_011ae68f3e](/fileadmin/_processed_/f/3/csm_CAPTRON-Thumb-Certificate-SENSORswitches-EN50155_011ae68f3e.jpg)
![csm_CAPTRON-Thumb-SENSORswitches-Symbol-List_a6e166b498 csm_CAPTRON-Thumb-SENSORswitches-Symbol-List_a6e166b498](/fileadmin/_processed_/2/a/csm_CAPTRON-Thumb-SENSORswitches-Symbol-List_a6e166b498.jpg)
![csm_CAPTRON-Thumb-Certificate-EG-RST_4abe9577db csm_CAPTRON-Thumb-Certificate-EG-RST_4abe9577db](/fileadmin/_processed_/4/c/csm_CAPTRON-Thumb-Certificate-EG-RST_4abe9577db.jpg)
![csm_CAPTRON-Thumb-Certificate-SENSORswitches-EN-45545_9abee0c15d csm_CAPTRON-Thumb-Certificate-SENSORswitches-EN-45545_9abee0c15d](/fileadmin/_processed_/d/e/csm_CAPTRON-Thumb-Certificate-SENSORswitches-EN-45545_9abee0c15d.jpg)
Service and Support
Product Images

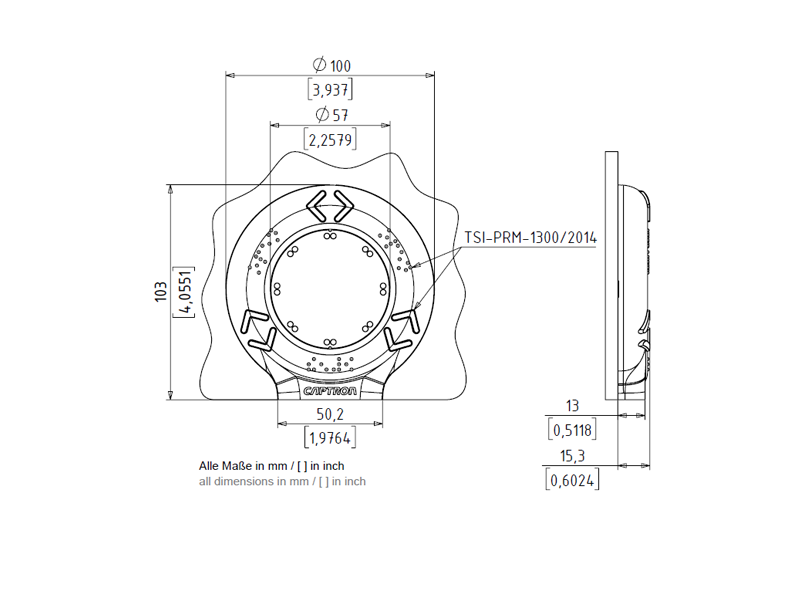

Technical Drawings
Application Images
Housing colors
Housing traffic red (RAL 3020)
Housing traffic yellow (RAL 1023)
Housing traffic green (RAL 6024)
Housing sky blue (RAL 5015)
Housing traffic black (RAL 9017)
Housing traffic grey A (RAL 7042)
Features
Tactile feedback: vibration
Function: Dynamic (Signal length limited)
Semi-Automatic
Switching output: PNP - transistor
Specifications
Supply voltage |
24V DC |
Output signal |
approx. 300 ms (dynamic) |
Optical feedback |
16 LEDs alternating (max. 2 colors) |
Tactile feedback |
Vibration |
Mounting method |
adhesive mounting |
Connection |
JST |
Output |
PNP |
Operating temperature |
-30°C...+80°C |
Switch surface material |
Polycarbonate (PC) |
Housing material |
Polycarbonate (PC) |
Suitable Accessories
CHT-46-#
JST Cable 4-poles for: |CHT3 | CHT4 |
|CHT5 | CHT51 | CHT6 | CHT61 | CHT7 | CHT9 |
- Different lengths are available
- Cable made of flame-retardant material
- 4-cores
- JST 2.54 plug
