CHT74-2 (Metal version)

Description

Single-sided operation inside
Ideal for printed glass surfaces or wall mounting

  • Ø 63 mm switch surface
  • Adhesive mounting
  • 12 mm height
  • Profile angle 90°


APPLICATION: TRAFFIC & TRANSPORT | BUILDING TECHNOLOGY

  • Customization
    Symbols and housing colors
  • TSI-PRM conform
    Pictograms and braille available
    Optical feedback through LEDs
    No operation force needed
  • 100 % water and oil-proof - IP69K
    Sensor is completely sealed in cast resin

Downloads CHT74-2

csm_thumb-CAPTRON-certificate-of-compliance-CSA_91d3ba7702
Certificate of Compliance - CSA

+ Download DE
+ Download EN
csm_CAPTRON-Thumb-SENSORswitches-Catalog_be86d76aeb
SENSORswitch product catalog

SENSORswitches

+ Download DE
+ Download EN
+ Download CN
+ Download PL
csm_CAPTRON-thumb-set-configuration-manual_bd65855eeb
SENSORswitch Configuration help

+ Download DE
+ Download EN
csm_thumb-CAPTRON-certificate-ece-r118_62db300f72
Certificate ECE-R118

+ Download DE
+ Download EN
+ Download PL
csm_CAPTRON-Thumb-Redesign-CHT7-Flyer_cb8208f1f1
Redesign SENSORswitches CHT7

+ Download DE
+ Download EN
+ Download PL
csm_CAPTRON-Thumb-SENSORswitches-Technical-Dossier_ef7650af01
Certificate TSI-PRM (Technical file)

+ Download DE
+ Download EN
+ Download CN
+ Download PL
csm_CAPTRON-Thumb-Certificate-SENSORswitches-EN50155_011ae68f3e
Certificate EN 50155

+ Download DE
+ Download EN
+ Download CN
+ Download PL
csm_CAPTRON-Thumb-SENSORswitches-Symbol-List_a6e166b498
SENSORswitch symbols catalog

SENSORswitches

+ Download DE
+ Download EN
+ Download CN
+ Download PL
csm_thumb_CAPTRON-Whitepaper-CRH380-en_54f35a3805
White paper "Project in China"

SENSORswitches

+ Download DE
+ Download EN
+ Download CN
+ Download PL
csm_CAPTRON-Thumb-Certificate-EG-RST_4abe9577db
Certificate "EG-Type Examination RST"

+ Download DE
+ Download EN
+ Download PL
csm_CAPTRON-Thumb-Certificate-SENSORswitches-EN-45545_9abee0c15d
Certificate SENSORswitches CHT7 "EN 45545"

+ Download DE
+ Download EN
+ Download PL

Service and Support

Request a quoteDownload centerTechnical support

Product Images

CAPTRON-SENSORswitches-CHT74-2

Technical Drawings

CAPTRON-SENSORswitches-drawing-CHT74-2

Application Images

CAPTRON-SENSORswitches-CHT74-2-Application-004

Housing colors

  • Titansilber-01Housing titan silver (painted aluminium)

Features

  • dynamicFunction: Dynamic (Signal length limited)
  • semi-automaticSemi-Automatic
  • pnpSwitching output: PNP - transistor

Specifications

Supply voltage 24V DC
Output signal approx. 300 ms (dynamic)
Optical feedback 16 LEDs alternating (max. 2 colors)
Mounting method adhesive mounting
Connection JST
Output PNP
Operating temperature -30°C...+80°C
Switch surface material Polycarbonate (PC)
Housing material Aluminium (AL)

Suitable Accessories

CAPTRON-Accessoires-Relais-CRM1-RW

CRM1-RW

Relay 110V with NO/NC output

  • PNP input
  • NO and NC output
  • Switching voltage 110V
  • Supply voltage 24V DC


APPLICATION: INDUSTRIAL AUTOMATION | BUILDING TECHNOLOGY

+ Details Product

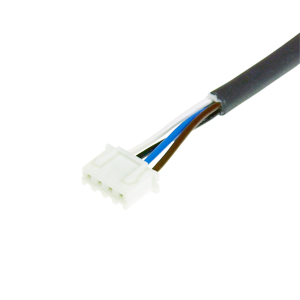

CHT-46-__pic

CHT-46-#

JST Cable 4-poles for: |CHT3 | CHT4 |
|CHT5 | CHT51 | CHT6 | CHT61 | CHT7 | CHT9 |

  • Different lengths are available
  • Cable made of flame-retardant material
  • 4-cores
  • JST 2.54 plug

APPLICATION: TRAFFIC & TRANSPORT | INDUSTRIAL AUTOMATION

+ Details Product
