CHT9-G (Hygienic)
Description
Ideal for pharmaceutical and medical areas
- Ø 100 mm total diameter
- Adhesive mounting
- 79-80 mm mounting hole
- 5 mm height
APPLICATION: BUILDING TECHNOLOGY | INDUSTRIAL AUTOMATION
- Customization
Symbols - Hygiene conform
Entire front made of toughened glass
Hygiene conform cleaning - 100 % water and oil-proof - IP69K
Sensor is completely sealed in cast resin - Optical feedback through LEDs
Downloads CHT9-G
Service and Support
Product Images

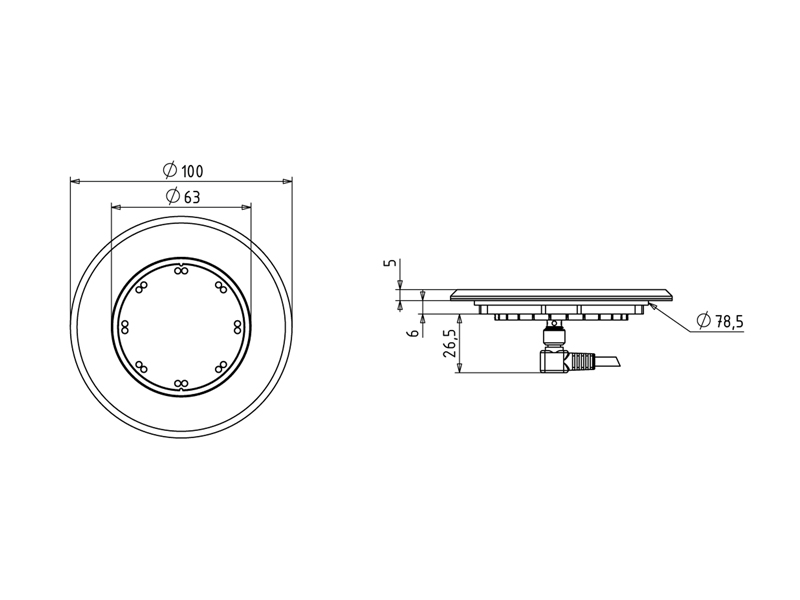

Technical Drawings
Application Images
Housing colors
Housing glass hygiene-conform
Features
Function: Dynamic (Signal length limited)- Manual
- Semi-Automatic
Automatic- Switching output: PNP - transistor
- Switching output: NPN - transistor
Specifications
| Supply voltage |
24V DC 12V DC (optional) |
| Output signal |
approx. 300 ms (dynamic) |
| Optical feedback |
16 LEDs alternating (max. 2 colors) |
| Mounting method |
adhesive mounting |
| Connection |
M8 JST cable + AMP 6,3 strands |
| Output |
PNP NPN-NO PNP/NPN changer strands (Automatic) |
| Operating temperature |
-30°C…+80°C (dynamic) |
| Housing material |
Safety glass |
| Switch surface material |
Polycarbonate (PC) |
