SCB4 (Switch B)

Description

safeCAP switch B separate

  • Ø 63 mm switch surface
  • Mounting Ø 45 - 59 mm
  • Compatibe with MCR-225 safety relay
  • Type III C certified according to DIN EN 13851



APPLICATION: PUNCHING | PRESSES

  • Optical feedback
    green LED (operation)
    red LED (triggering)
  • Compatible with safety relais
    MCR-225
  • 100 % water- und oil proof - IP69K
    Sensor is completely sealed in cast resin
  • No operation force needed
    Ease of use and reduced stress on the wrist

Downloads SCB4

csm_CAPTRON-Zweihandsteuerung-SC4-MTTF-Zertifikat_6b2522ed4b
MTTF-Certificate safeCAP SC4 two-hand control

SENSORswitch SC4

+ Download DE
+ Download EN
csm_SafeCap-B_ade9747828
STEP: safeCAP SC4 (switch B)

+ Download DE
+ Download EN
+ Download CN
+ Download PL
csm_Safecap-MCR-225-BA_V1.3_en_abdf4cec0d
SC4/MCR-225 Relais Operating manual

Zweihandsteuerung

+ Download DE
+ Download EN
csm_CAPTRON-thumb-Catalog-safeCAP_92c8eca291
Two-hand control safeCAP product catalog

Two-hand control safeCAP

+ Download DE
+ Download EN
+ Download CN
csm_CAPTRON-Thumb-SC4-Information_d79c15f280
safeCAP SC4 Information

+ Download DE
+ Download EN
+ Download PL
csm_thumb-safeCAP-SC4-Instruction-PNOZ-s6_042f08c83d
Instruction "safeCAP SC4" with pilz PNOZ s6

Zweihandsteuerung

+ Download DE
+ Download EN
+ Download PL

Service and Support

Request a quoteDownload centerTechnical support

Product Images

CAPTRON-two-hand-safety-control-safeCAP-SC4-SCA

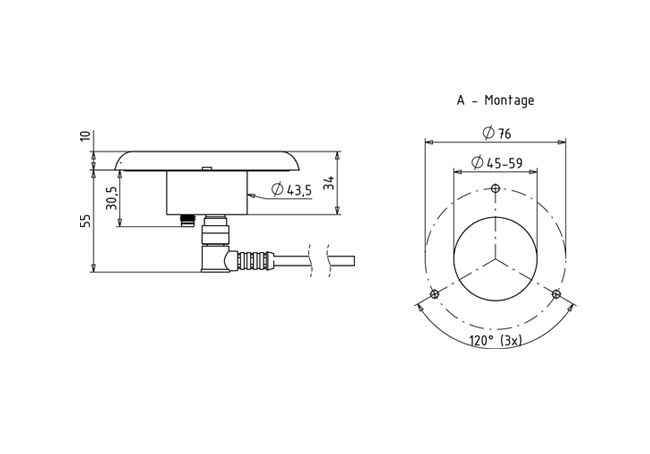

Technical Drawings

CAPTRON-drawing-safeCAP4-SCA4

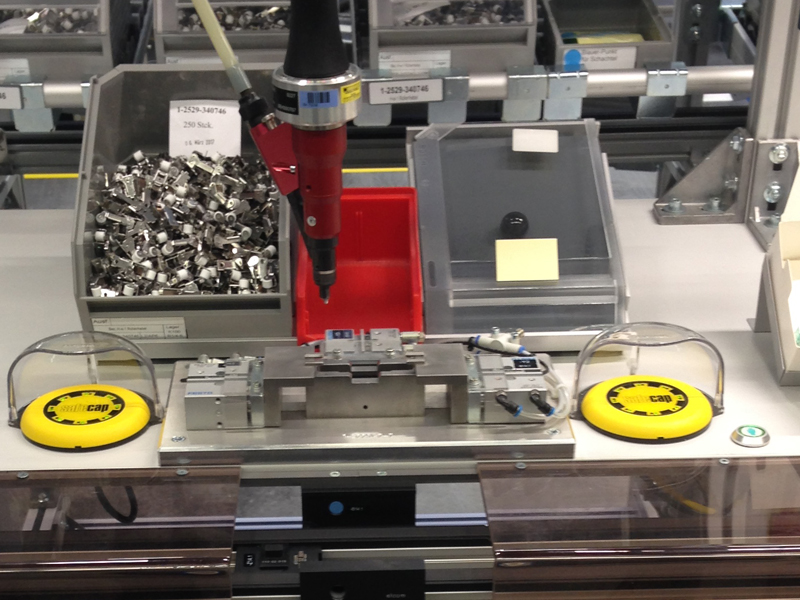

Application Images

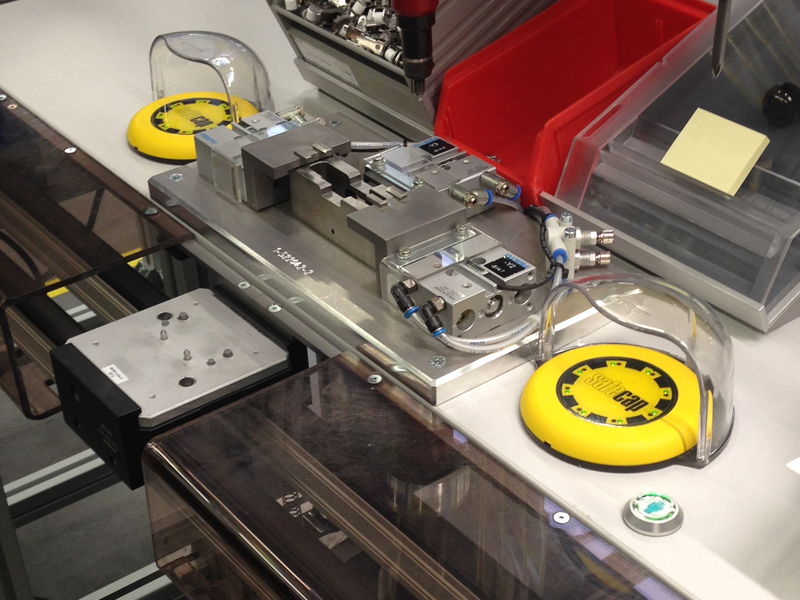

CAPTRON-Two-Hand-Control-SC4-Application-Protect-001
CAPTRON-Two-Hand-Control-SC4-001
CAPTRON-Two-Hand-Control-SC4-Application-002

Housing colors

  • RAL1023-VerkehrsgelbHousing traffic yellow (RAL 1023)
  • RAL6024-VerkehrsgruenHousing traffic green (RAL 6024)

Features

  • relSwitching output: PhotoMOS-Relay NO

Specifications

Supply voltage 24V DC
Output signal Static
Output PhotoMOS-Relais, electronic
Mounting method screw mounting
Connection M12
Optical feedback 16 LEDs alternating (max. 2 colors)
Operating temperature 0°C…+55°C (static)
Housing material Polycarbonate (PC)
Switch surface material Polycarbonate (PC)
Performance Level Ple*
MTTFd 100 Jahre
PFHd 2,57 10-10 /h
Category CAT 4*
DC 0 (99% mit Relais)
TM 20 years
Note* Values are achieved in conjunction with an appropriately approved safety relay for two-hand controls
