series40 Puck

Description

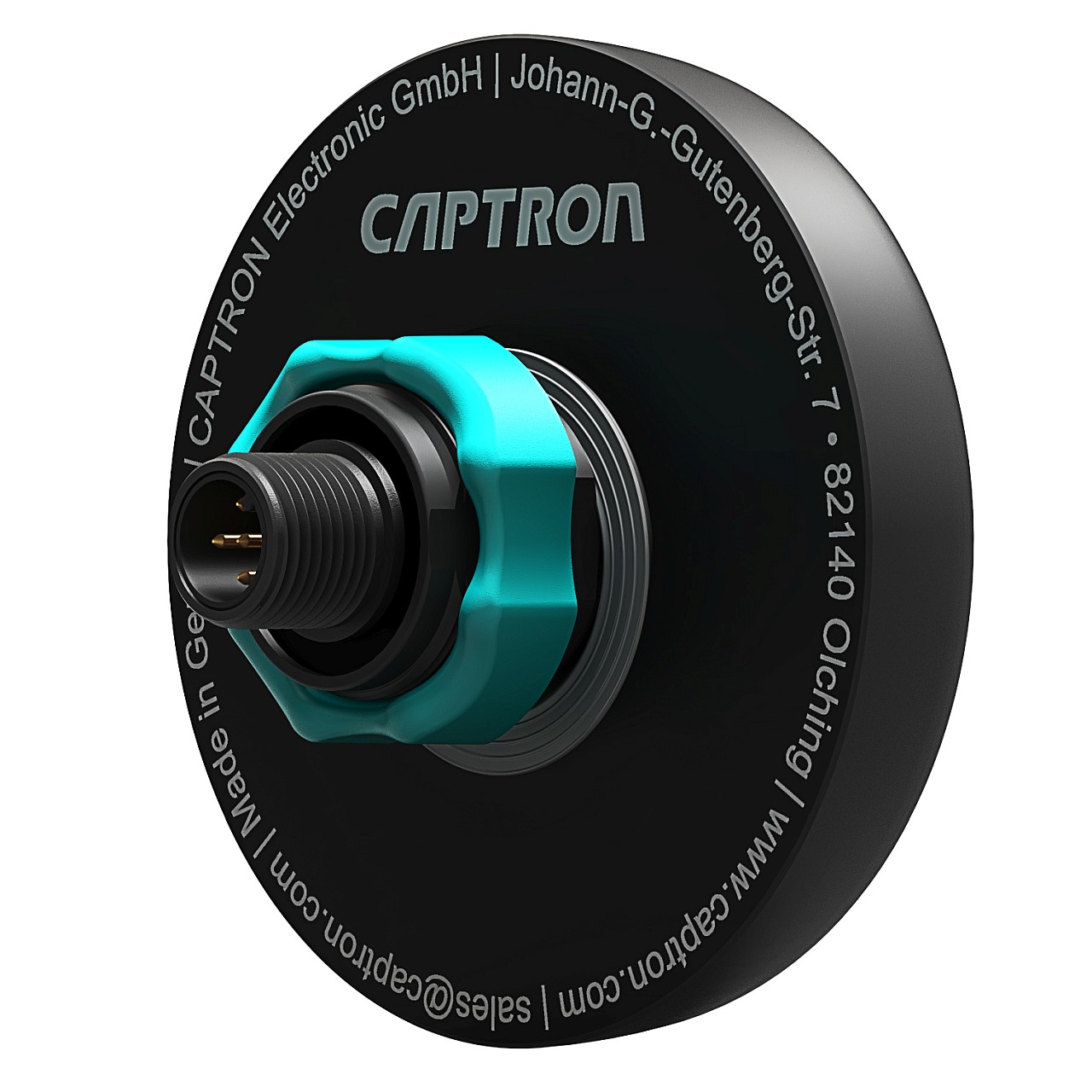

Robust black housing for 22.5 mm mounting with knurled nut
Free choice of the symbol
Configurable LED ring
IO-Link / NPN / PNP / Push-Pull with M12 connector

APPLICATION: INDUSTRIAL AUTOMATION

Dimensions
Ø 68 mm total diameter
Ø 60 mm switch surface
32,30 mm height
Assembly
screw mounting
Ø 22,5 mm mounting hole
Freely programmable functions
LED colors, Switch sensitivity, actuation type and time, as well as various output signals
Further connections
Operation without IO-Link possible (PNP, NPN, Push-pull)
Preconfigured parameters
Control of the LED ring and display via E1 and E2
IODDfinder (further link):
+ CAPTRON CANEO series "IODD-Datei"

Downloads series40 Puck

csm_CANEO-series40_Puck_Display_Standard-DS_1.0_en_c85d684db8

Datasheet - series40 Puck Display/Standard

+ Download DE
+ Download EN

csm_TRM_CANEO_series4x_FW_V5.x_revD_7236de2789

TRM CANEO series4x Firmware V5.x revD

+ Download DE
+ Download EN
+ Download PL

csm_CAPTRON-BA-series40-Puck-thumb_de_f9598d640a

CANEO series40 Puck Standard / Display Operating Instructions

+ Download DE
+ Download EN

csm_thumb-CAPTRON-certificate-of-compliance-CSA_91d3ba7702

Certificate of Compliance - CSA

+ Download DE
+ Download EN

csm_CANEO_fd397eb4a8

STEP: CANEO series40 Puck-M12

+ Download DE
+ Download EN
+ Download CN
+ Download PL

Service and Support

Request a quote

Download center

Technical support

Product Images

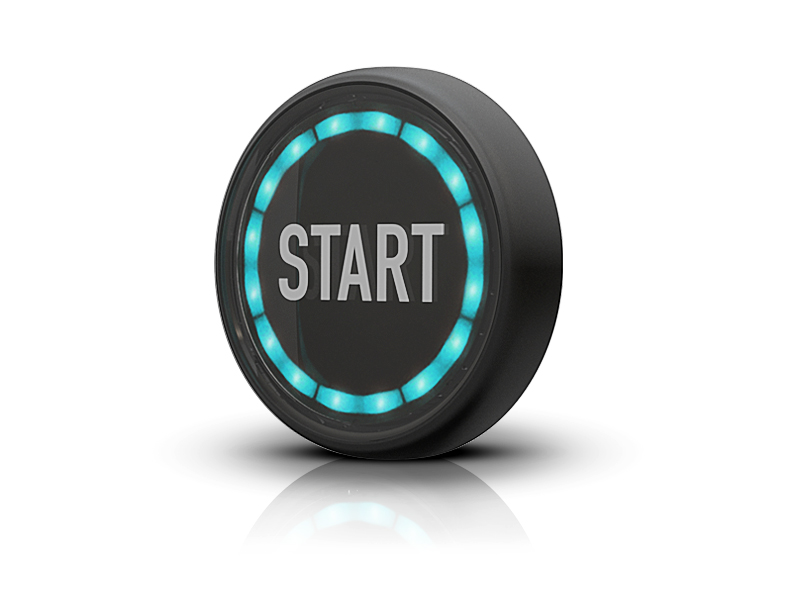

CAPTRON-SENSORswitches-series40-Puck

[Translate to Englisch:]

Housing colors

Housing traffic black (RAL 9017)

Features

Manual
Automatic
Semi-Automatic

Specifications

Communication interface	IO-Link V1.1
Voltage drop	Max. 2.5 V at 200 mA Max. 2,5 V per output at 200 mA
IP protection level	IP69K
Wire count	5-pole
Housing material	Polycarbonate (PC)
Connection	M12
Operating temperature	-25°C...+50°C
IK level of protection	IK08
Output	PNP-NC PNP-NO Push-pull-NC Push-pull-NO NPN-NO NPN-NC

Suitable Accessories

CAPTRON-Accessoires-Mounting-Support-Connection-Cable-M12

Cable M12

M12 cable for sensor connection

Straight or angled connector
Different lengths are available
Different numbers of cores are available
Screw mounting

APPLICATION: TRAFFIC & TRANSPORT | INDUSTRIAL AUTOMATION

CA-V-3414-00

CA-V-3414-00

Mounting adapter for CANEO series40 puck and puck display

for CANEO series40 with 22.5 mm mounting thread
Adapter: M22x1 to M30x1.5
18mm diameter
Material: black anodized aluminium

APPLICATION: INDUSTRIAL AUTOMATION | LOGISTICS

CMB-U9-3220-01

CMB-U9-3220-01

Mounting bracket for CANEO series40 puck and puck display

for CANEO series40 with 22.5 mm and 30 mm diameter
90° angle
Material: natural anodized aluminium

APPLICATION: INDUSTRIAL AUTOMATION | LOGISTICS
