series41 Solid Display

Description

Black mounting support for screw mounting with colored cover ring
Free choice of the symbol
Configurable LED ring
IO-Link / NPN / PNP / Push-Pull with M12 connector

APPLICATION: INDUSTRIAL AUTOMATION | LOGISTICS

Dimensions
Ø 100 mm total diameter
Ø 60 mm switch surface
32.30 mm height
Assembly
screw mounting
Ø 27-60 mm mounting hole
Freely programmable functions
LED colors, Switch sensitivity, actuation type and time, as well as various output signals
Further connections
Operation without IO-Link possible (PNP, NPN, Push-pull)
8 Preconfigured LED scenes
Control of the LED ring and display via E1 and E2
IODDfinder (further link):
+ CAPTRON CANEO series "IODD-Datei"

Downloads series41 Solid Display

csm_TRM_CANEO_series4x_FW_V5.x_revD_7236de2789

TRM CANEO series4x Firmware V5.x revD

+ Download DE
+ Download EN
+ Download PL

csm_CAPTRON-download-series4x-brosch%C3%BCre-thumb-en_77a1454dcb

CANEO series4x brochure

CANEO series

+ Download DE
+ Download EN
+ Download CN
+ Download PL

csm_thumb-CAPTRON-certificate-of-compliance-CSA_91d3ba7702

Certificate of Compliance - CSA

+ Download DE
+ Download EN

csm_CANEO_fd397eb4a8

STEP: CANEO series41 Solid M12

+ Download DE
+ Download EN
+ Download CN
+ Download PL

Service and Support

Request a quote

Download center

Technical support

Product Images

CAPTRON-SENSORswitches-series41-Solid-Display

CAPTRON-SENSORswitches-series41-Solid-AH10

Technical Drawings

CAPTRON-drawing-series41-solid_01

CAPTRON-drawing-series41-solid_02

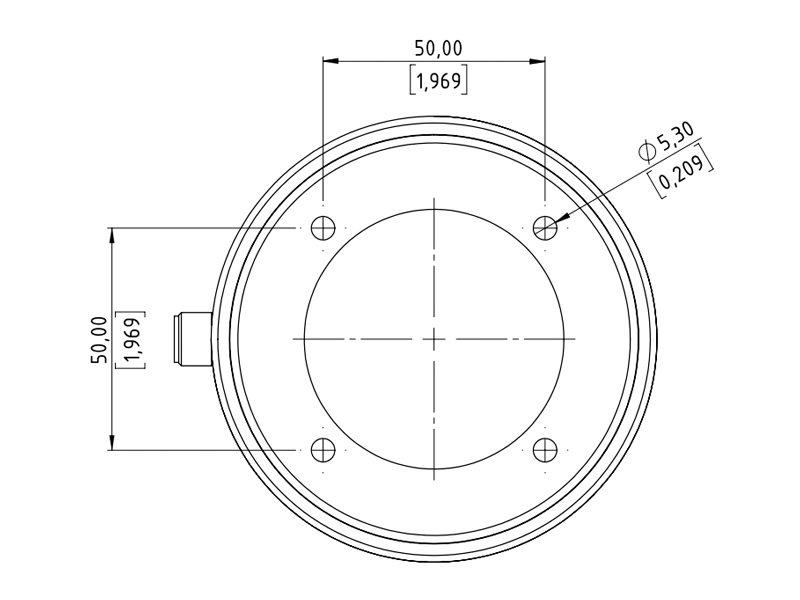

CAPTRON-drawing-series41-solid_04

CAPTRON-drawing-series41-solid_03

Housing colors

Housing traffic black (RAL 9017)
Housing traffic grey A (RAL 7042)
Housing traffic grey B (RAL 7043)
Housing traffic white (RAL 9016)
Housing traffic yellow (RAL 1023)
Housing traffic green (RAL 6024)
Housing sky blue (RAL 5015)
Housing traffic orange (RAL 2009)
Housing traffic red (RAL 3020)

Features

Manual
Automatic
Semi-Automatic

Specifications

Communication interface	IO-Link V1.1
Voltage drop	Max. 2.5 V at 200 mA Max. 2,5 V per output at 200 mA
IP protection level	IP69K
Wire count	5-pole
Housing material	Polycarbonate (PC)
Connection	M12
Operating temperature	-25°C...+50°C
IK level of protection	IK08
Output	PNP-NC PNP-NO Push-pull-NC Push-pull-NO NPN-NO NPN-NC

Suitable Accessories

CAPTRON-Accessoires-Mounting-Support-Connection-Cable-M12

Cable M12

M12 cable for sensor connection

Straight or angled connector
Different lengths are available
Different numbers of cores are available
Screw mounting

APPLICATION: TRAFFIC & TRANSPORT | INDUSTRIAL AUTOMATION
