series41 Standard

Description

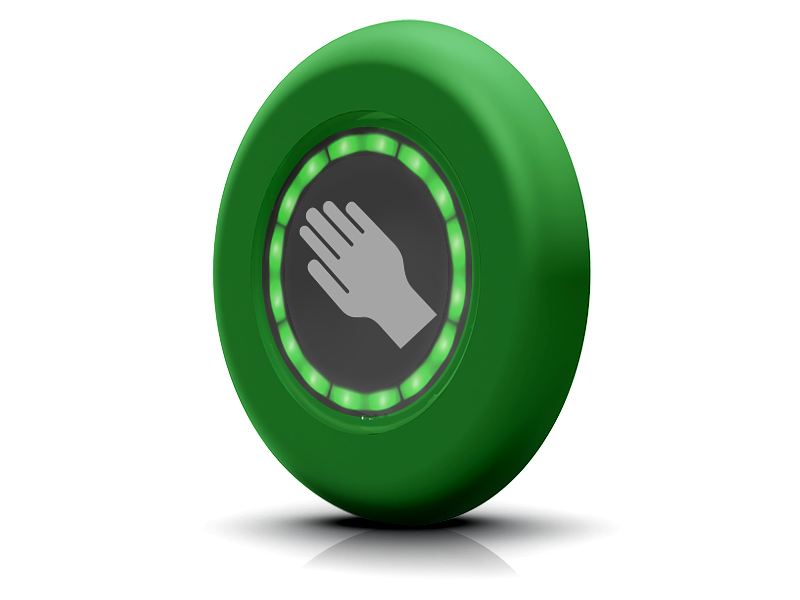

  • Switch with colored cover ring for screw mounting
  • Free choice of the symbol
  • Configurable LED ring
  • IO-Link / NPN / PNP / Push-Pull with M12 connector


APPLICATION: INDUSTRIAL AUTOMATION | LOGISTICS

  • Dimensions
    Ø 100 mm total diameter
    Ø 63 mm switching surface
    10 mm height
  • Assembly
    V-mounting
    Ø 27-60 mm mounting hole
  • Freely programmable functions
    LED colors, Switch sensitivity, actuation type and time as well as various output signals
  • Further connections
    Operation without IO-Link possible (PNP, NPN, Push-pull)
  • 8 preconfigured LED scenes
    Control of the LED ring and display via E1 and E2
  • Further links:
    + CAPTRON CANEO series4x "IODD-Datei"

Downloads series41 Standard

csm_TRM_CANEO_series4x_FW_V5.x_revD_7236de2789
TRM CANEO series4x Firmware V5.x revD

+ Download DE
+ Download EN
+ Download PL
csm_CAPTRON-download-series4x-brosch%C3%BCre-thumb-en_77a1454dcb
CANEO series4x brochure

CANEO series

+ Download DE
+ Download EN
+ Download CN
+ Download PL
csm_CAPTRON-thumbs-ba-series41-standard-display_en_29ef4557a3
CANEO series41 Standard / Display Operating Instructions

+ Download DE
+ Download EN
csm_thumb-CAPTRON-certificate-of-compliance-CSA_91d3ba7702
Certificate of Compliance - CSA

+ Download DE
+ Download EN
csm_thumb-CAPTRON-certificate-ece-r118_62db300f72
Certificate ECE-R118

+ Download DE
+ Download EN
+ Download PL
csm_CANEO_fd397eb4a8
STEP: CANEO series41 Standard M12

+ Download DE
+ Download EN
+ Download CN
+ Download PL
csm_CANEO_fd397eb4a8
STEP: CANEO series41 Standard strands (strands included)

+ Download DE
+ Download EN
+ Download CN
+ Download PL

Service and Support

Request a quoteDownload centerTechnical support

Product Images

CAPTRON-SENSORswitches-series41-Standard_01

Technical Drawings

CAPTRON-drawing-series41-standard_01
CAPTRON-drawing-series41-standard_02
CAPTRON-drawing-series41-standard_03
CAPTRON-drawing-series41-standard_04

Application Images

CAPTRON-SENSORswitches-series4x-application

Housing colors

  • RAL9017-VerkehrsschwarzHousing traffic black (RAL 9017)
  • RAL6024-VerkehrsgruenHousing traffic green (RAL 6024)
  • RAL3020-VerkehrsrotHousing traffic red (RAL 3020)
  • RAL9016-Verkehrswei%C3%9FHousing traffic white (RAL 9016)
  • RAL2009-VerkehrsorangeHousing traffic orange (RAL 2009)
  • RAL1023-VerkehrsgelbHousing traffic yellow (RAL 1023)
  • RAL5015-HimmelblauHousing sky blue (RAL 5015)
  • RAL7042-Verkehrsgrau-AHousing traffic grey A (RAL 7042)
  • RAL7043-VerkehrsgrauBHousing traffic grey B (RAL 7043)

Features

  • manualManual
  • automaticAutomatic
  • semi-automaticSemi-Automatic

Specifications

Communication interface IO-Link V1.1
Switch surface material Polycarbonate (PC)
IP protection level Front IP69K
IK level of protection IK08
Reverse polarity protection Protection of all lines (temporary)
Voltage drop Max. 2.5 V at 200 mA
Max. 2,5 V per output at 200 mA
Connection M12
Output PNP-NC
PNP-NO
Push-pull-NC
Push-pull-NO
NPN-NC
NPN-NO
Housing material Polycarbonate (PC)
Operating temperature -25°C...+50°C
