[Translate to Englisch:] CAPTRON CANEO seriesSR kapazitive Haltewunschtaster

series SR

Description

Contemporary, R107.8-compliant public transport passenger experience - with our new, compact generation of stop request buttons.

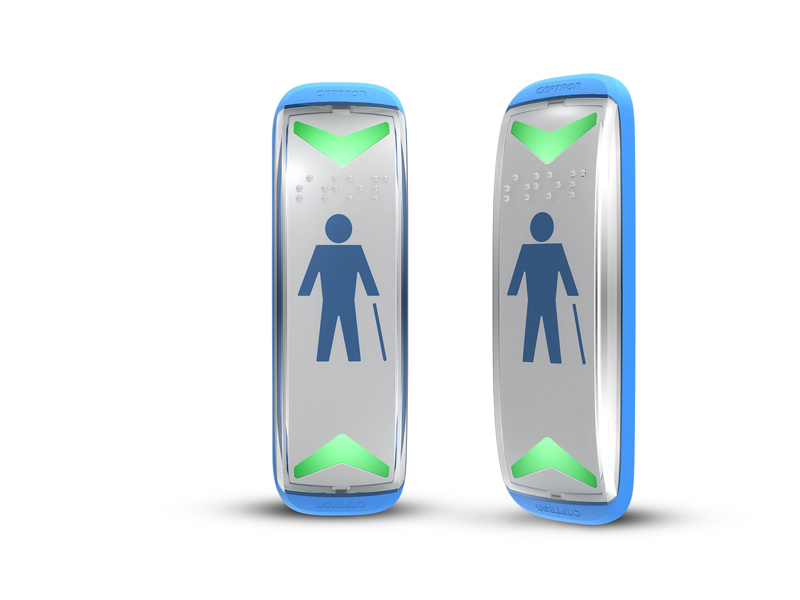

  • Bar or wall mounting

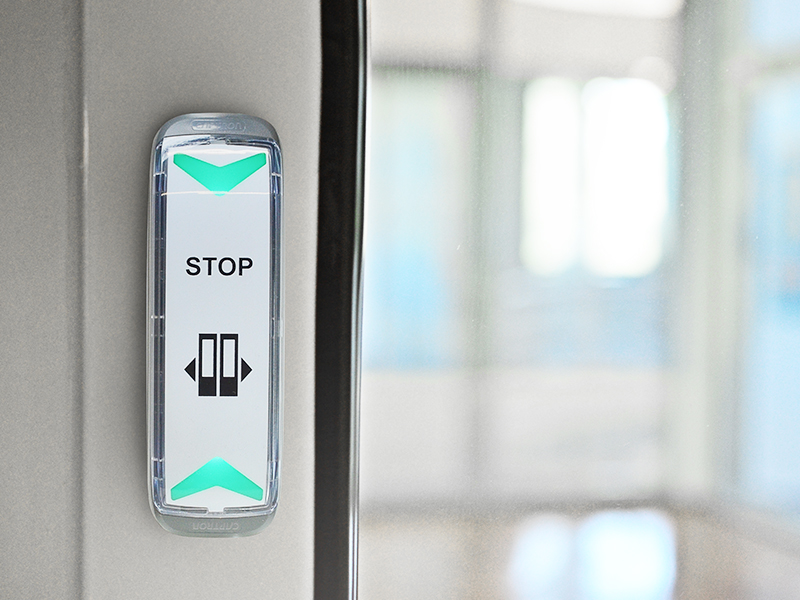

  • Hold request button and door opener in one
  • Mechanism against false triggering

APPLICATION: TRAFFIC AND TRANSPORT

  • Slim and reduced design
    without visible screws
  • ECE-R107.8 und TSI-PRM compliant
    easily recognizable due to high contrast of the symbol, visual and acoustic feedback
  • Saves time and costs
    maintenance and wear-free sensor technology, easy to clean, extremely long service life (several 100 million switching cycles), vandal-proof

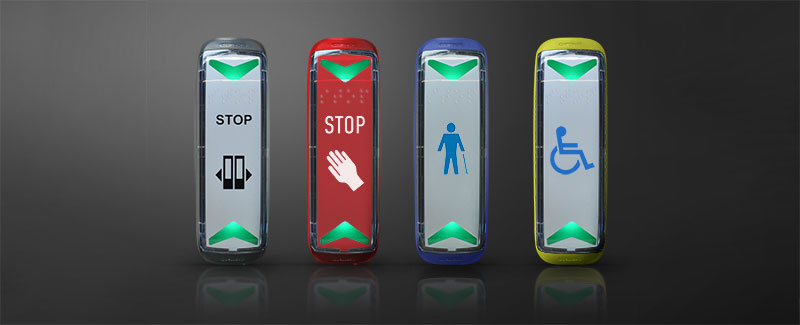

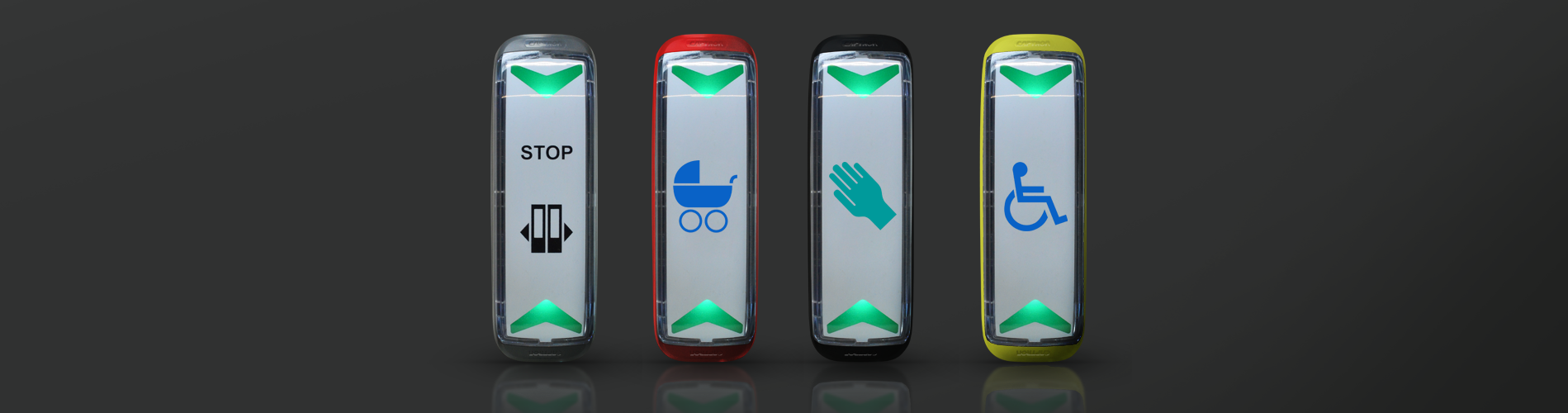

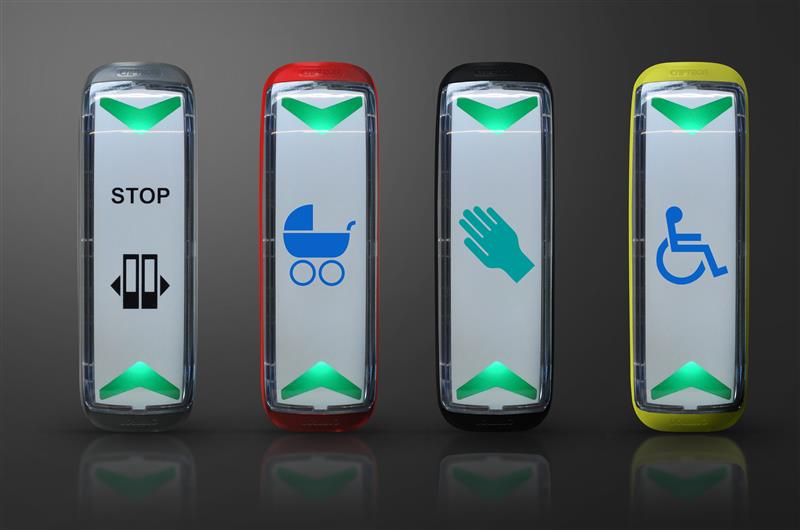

  • Customizable
    variety of symbols and variable housing colors possible
  • Easy to install according to the plug and play principle

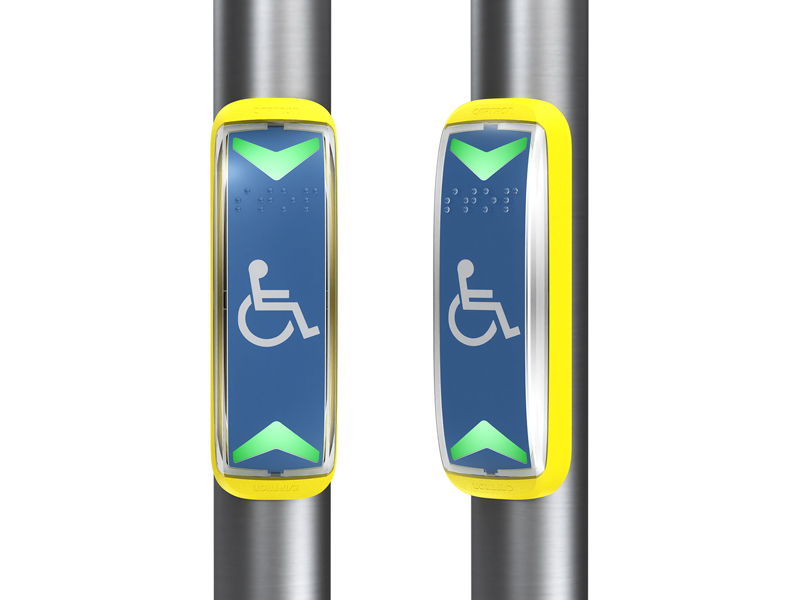

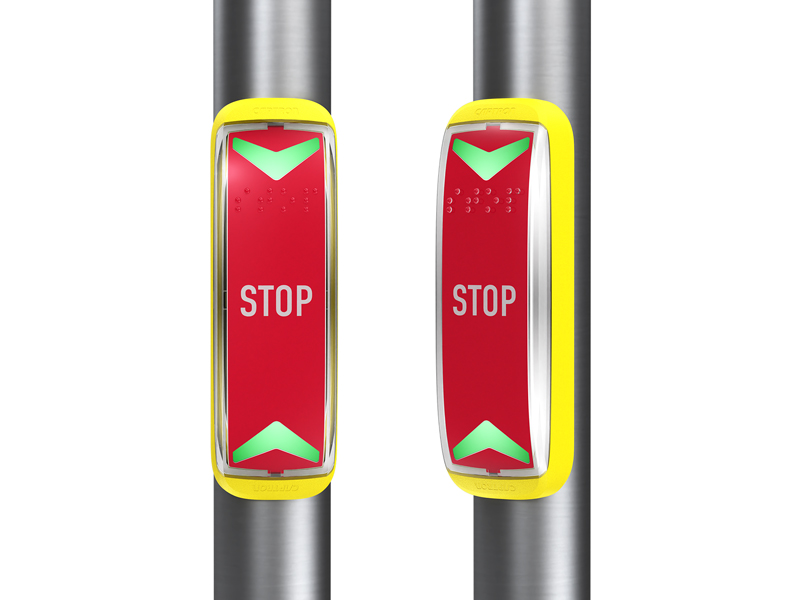

    holding bars (30-35mm diameter) or wall mounting; compatible as replacement for existing HWT2

Downloads series SR

CSR-wall-T23
STEP: CANEO series SR wall-T23

+ Download DE
+ Download EN
csm_thumb-CANEO-sseriesSR-manual_EN_fdfeafb3e1
Manual CANEO series SR

SENSORtaster

+ Download DE
+ Download EN

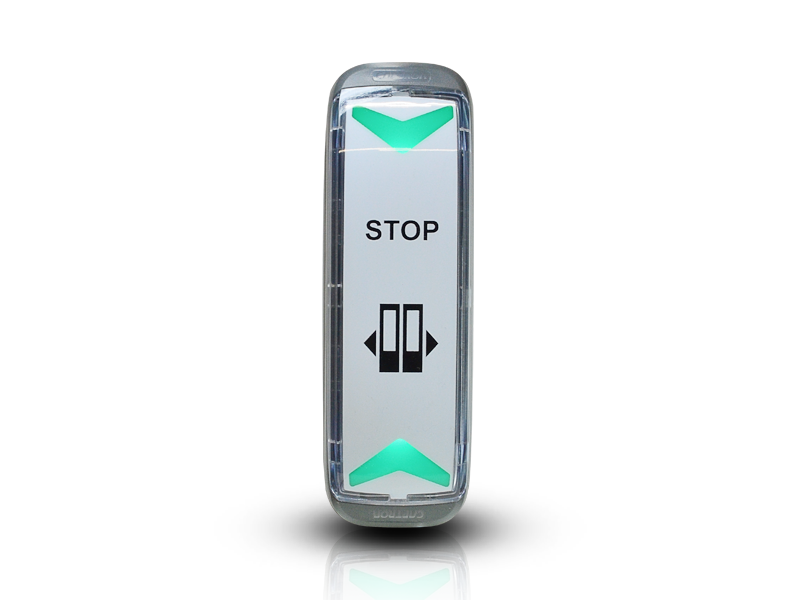

Product Images

CANEO-seriesSR_braille

Technical Drawings

Technische_Zeichnungen_seriesSR_Stangenmontage34-35mm
Technische_Zeichnungen_seriesSR_Stangenmontage30-32mm
Technische_Zeichnungen_seriesSR_Wandmontage

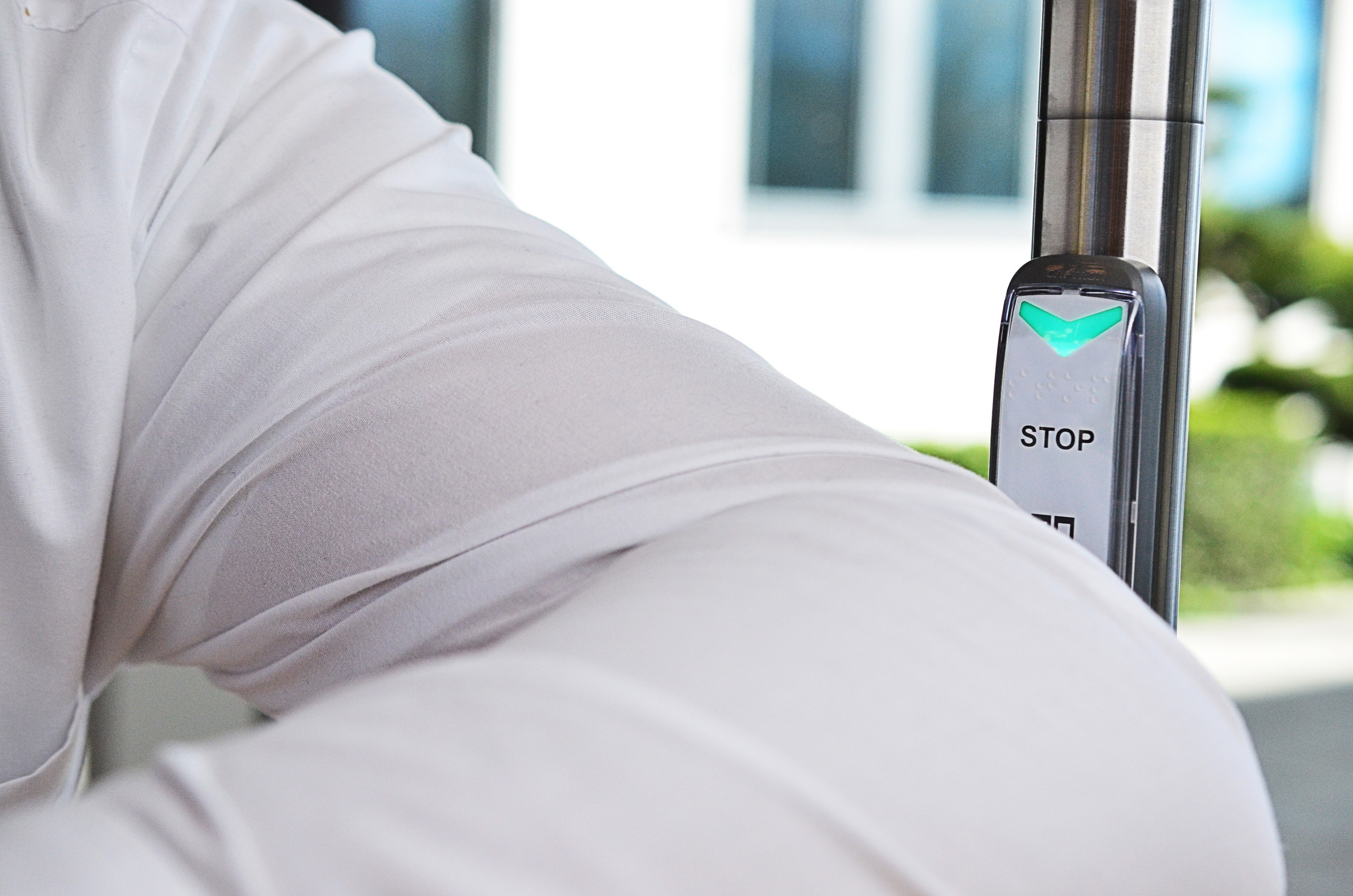

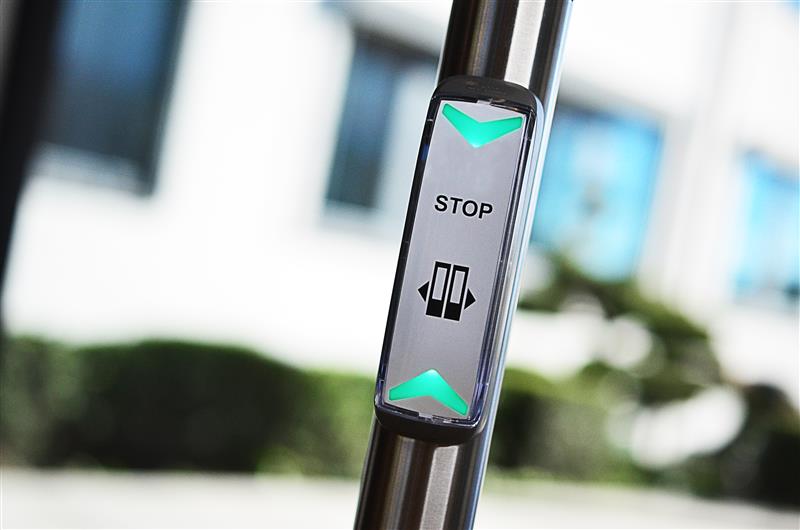

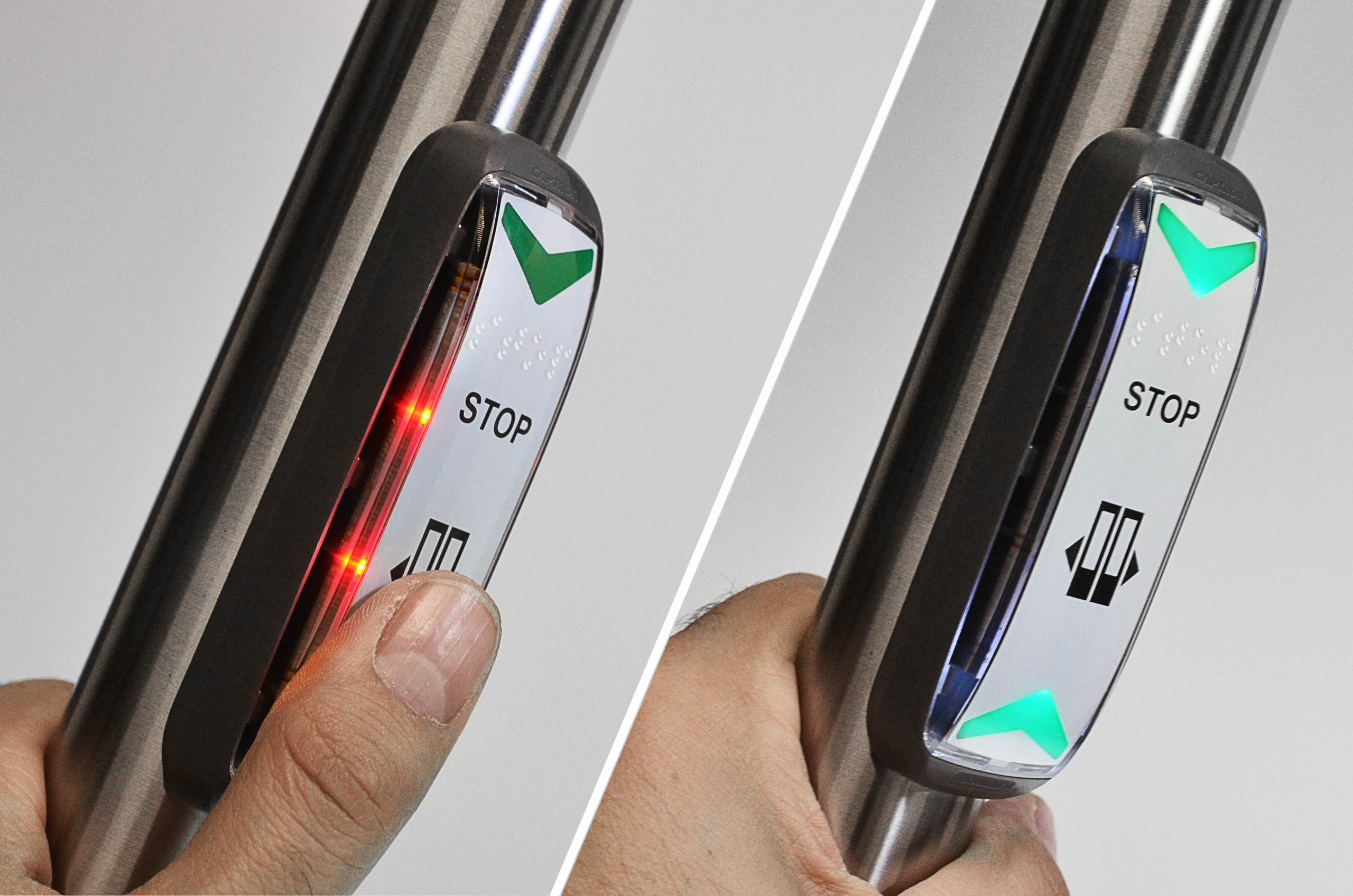

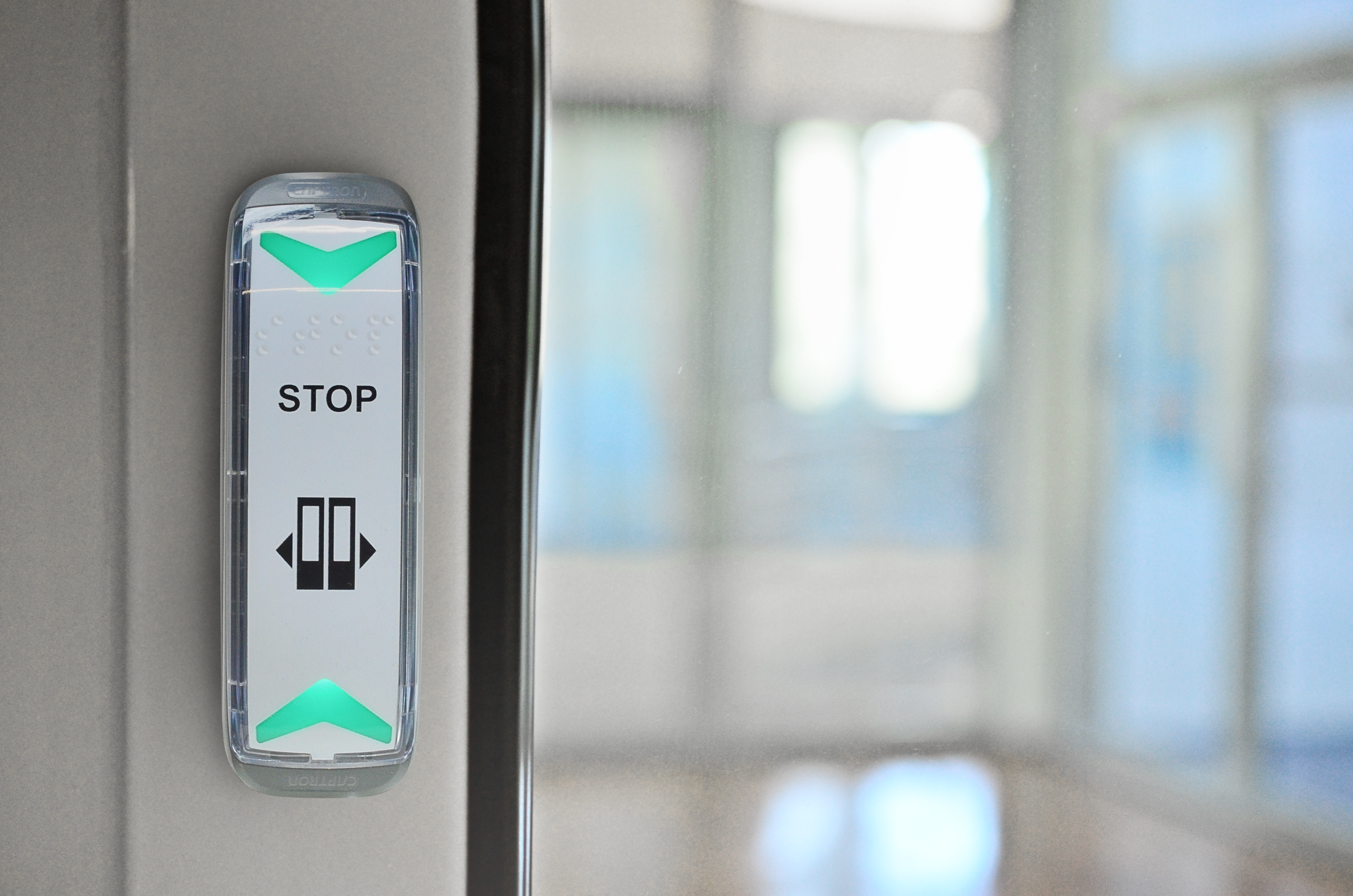

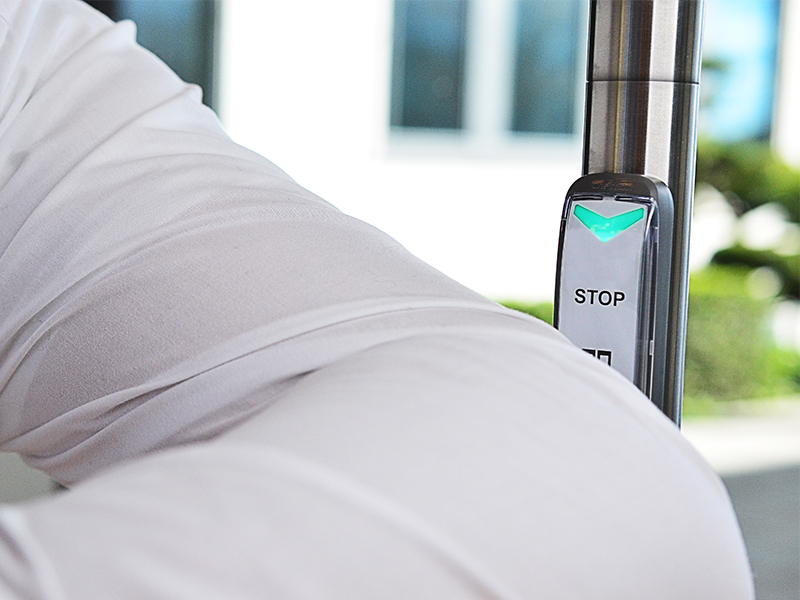

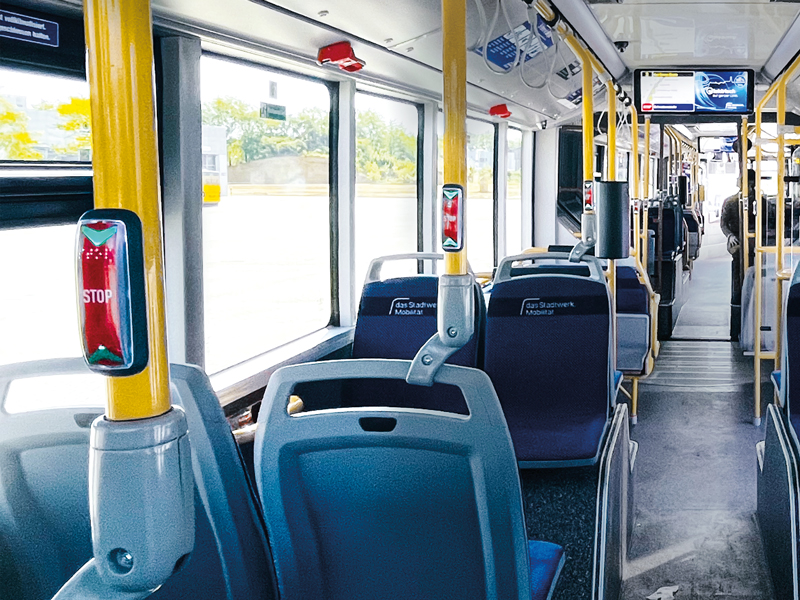

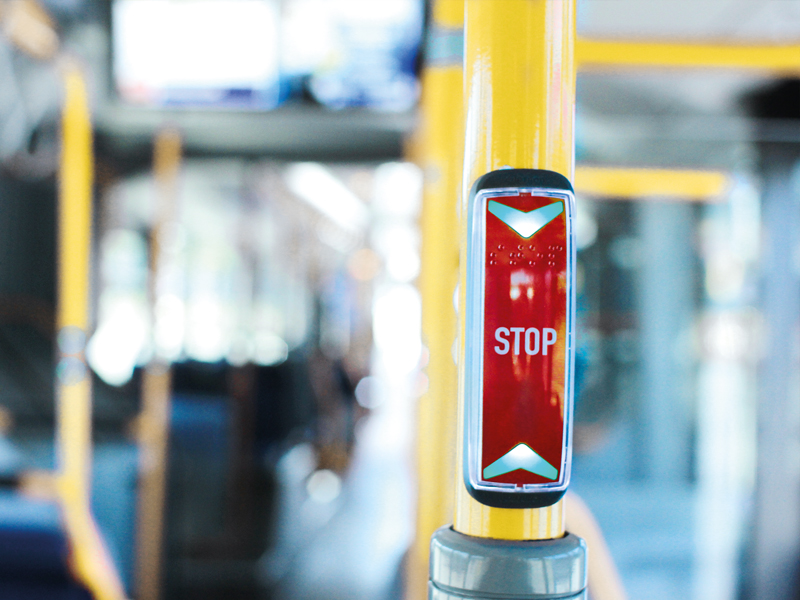

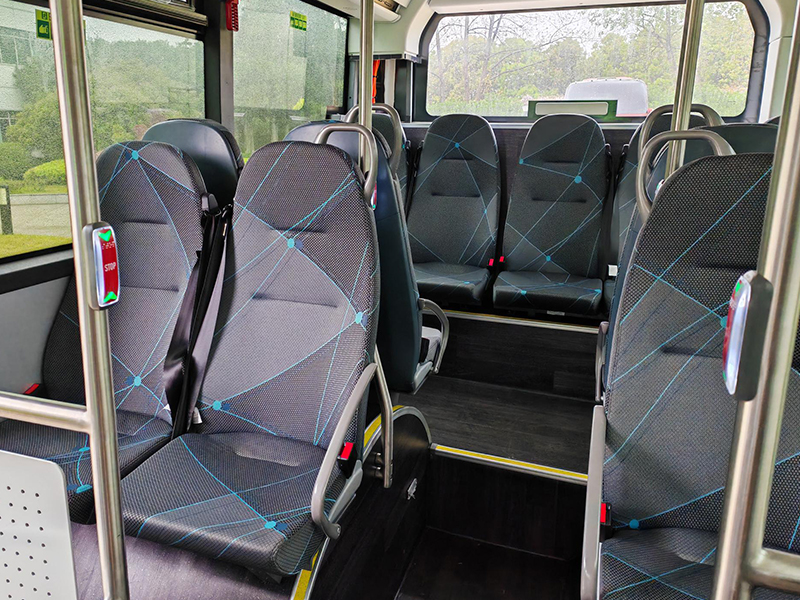

Application Images

[Translate to Englisch:]
[Translate to Englisch:]
[Translate to Englisch:]
[Translate to Englisch:]
[Translate to Englisch:]

Features

  • acousticAcoustic feedback: signal tone

Specifications

Supply voltage 24 V (10...32 V)
Load current Max. 100 mA
Output PNP-NO
Output signal ca. 400 ms
LED1 custom color
LED2 red
Reverse polarity protection Protection of all lines (temporary)
Short circuit protection Protected against short circuit and overload
Voltage drop max. 2.5 V at 100 mA
Current consumption max. 30 mA (at 24 V without signal tone)
max. 150 mA (at 24 V with signal tone)
Operating temperature -30°C...+80°C
Storage temperature -55°C...+95°C
IP protection level IP40
IK level of protection IK08
Type of actuation capacitive
Actuation force No actuation force required
Relative air humidity max. 93%, non-condensing
