LED signalling CTL1

Description

Triple LED signal lamps from CAPTRON light up in 3 different colors. The compact housings are available in polycarbonate, aluminium or stainless steel. The front is impact-resistant and can be cleaned using a pressure washer (classes of protection IK08 and IP68K). They can either be bolted to a front panel or installed flush.

Downloads

csm_CAPTRON-Thumb-LED-signalling-CTL1-Catalog_58bf2e193e
LED signaling Product Catalog "CTL1"

+ Download DE
+ Download EN
+ Download CN
+ Download PL

Service and Support

Request a quoteDownload centerTechnical support

Important properties

  • Illuminated area 20 mm in diameter
    The electronics and lamps are cast to make them watertight
  • Extremely long service life of up to 100,000 hours
    Energy-efficient, maintenance-free, wear-free
  • 100% waterproof and oil-resistant / vandalism-proof
    Degree of protection IP69K, impact and scratch-resistant IK08
  • Hygiene-compliant (depending on model)
    To DIN EN 1672 with stainless steel housing

Products

csm_CAPTRON-LED-signalling-CML1-1-Standard_0a765fc413

CTL1-1 (Standard)

3-color TripleLED SIGNAL LAMP

  • Ø 28.5 mm total diameter
  • Lock nut
  • Ø 22.5 mm mounting hole
  • 6.5 mm height

APPLICATION: INDUSTRIAL AUTOMATION | BULDING TECHNOLOGY

Products
csm_CAPTRON-LED-signalling-CML1-1_8-Hygiene_36a9d38195

CTL1-1#8 (Hygienic)

3-color TripleLED SIGNAL LAMP hygiene conform

  • Ø 40 mm total diameter
  • Lock nut
  • Ø 22.5 mm mounting hole
  • 7 mm height

APPLICATION: FOOD & BEVERAGE | INDUSTRIAL AUTOMATION | BUILDING TECHNOLOGY

Products
csm_CAPTRON-LED-signalling-CML1-T_8-Hygiene-Snap-in_819d37c41e

CTL1-T#8 (Hygienic - Snap-In)

3-color TripleLED SIGNAL LAMP hygiene conform, snap-in mounting

  • Ø 40 mm total diameter
  • Snap-In mounting
  • Front plate thickness min. 1.5 mm
  • Ø 22.5 mm mounting hole
  • 10 mm height

APPLICATION: FOOD & BEVERAGE | INDUSTRIAL AUTOMATION | BUILDING TECHNOLOGY

Products
csm_CAPTRON-LED-signalling-CML1-1_X-Flush_0f355886f9

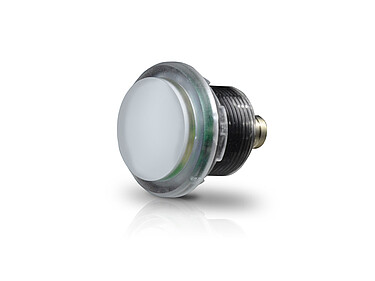

CTL1-1#X (Flush)

3-color TripleLED SIGNAL LAMP front panel mounting

  • Ø 26.5 mm total diameter
  • Adhesive mounting / screw mounting
  • Ideal front plate thickness 3 mm (optional)
  • Ø20 mm mounting hole (optional)


APPLICATION: FOOD & BEVERAGE | INDUSTRY AUTOMATION | BUILDING TECHNOLOGY

Products
csm_CAPTRON-LED-signalling-CML1-1_8-Hygiene_36a9d38195

CTL1-1#8 (Hygienic)

3-color TripleLED SIGNAL LAMP hygiene conform

  • Ø 40 mm total diameter
  • Lock nut
  • Ø 22.5 mm mounting hole
  • 7 mm height


APPLICATION: FOOD & BEVERAGE | INDUSTRIAL AUTOMATION | BUILDING TECHNOLOGY

Products
csm_CAPTRON-LED-signalling-CML1-T_8-Hygiene-Snap-in_819d37c41e

CTL1-T#8 (Hygienic - Snap-In)

3-color TripleLED SIGNAL LAMP hygiene conform, snap-in mounting

  • Ø 40 mm total diameter
  • Snap-In mounting
  • Front plate thickness min. 1.5 mm
  • Ø 22.5 mm mounting hole
  • 10 mm height


APPLICATION: FOOD & BEVERAGE | INDUSTRIAL AUTOMATION | BUILDING TECHNOLOGY
