For industrial applications, the use of capacitive fill level sensors is a proven, universal and cost-efficient technique measuring the fill level and limit level of liquids, bulky goods, pastes, adhesives and chemically aggressive materials.
Use the CAPselect system to configure your compact probe entirely in line with your needs - depending on the application, container type and sensor properties. CAPTRON produces probes with millimeter accuracy to ensure full flexibility.
Choose from a range of combination options between electronics, process connections, rod types and rod lengths.
Other additional options for compact probes include: LightCAP for container illumination, the integrated PT100 for measuring the temperature of the medium and increased pressure resistance for probes.
Thanks to their wear-free electronics combined with high-quality material such as stainless steel, Teflon and Peek, CAPTRON fill level sensors are reliable, robust and long-lasting.
To choose the perfect measuring technology for your needs, speak to our CAPTRON experts: CAPTRON Service.
Level sensors Compact probes
Description
Downloads
Service and Support
Important properties
- Capacitive fill level measurement
Proven measuring principle - reliable and accurate - CAPselect system
Freely configurable fill level probes - Full flexibility
Customized probe lengths - with millimeter accuracy - Stable housing
Probe head made from anodized aluminium - Extremely long lifespan
Wear-free electronics, high-quality materials - Incl. display
LED display - Simple and customized assembly
Various process connections - Switching outputs
Analog and digital - Options
Temperature sensor, container illumination (LightCAP), increased pressure resistance
Products
VA-214
One switchingpoint and one analog value
- Switching point NO / NC programable
- Output of the analog value as current or voltage
- Analog value with cable breakdown protection
- Measured value displayed by amplifier
APPLICATION: PLANTS & MACHINES | FOOD & BEVERAGES
VA-234 (Analog + 3 switching outputs)
Three switching points and one analog value
- Three switching points NO / NC programable
- Output of the analog value as current or voltage
- Analog value with cable breakdown protection
- Measured value displayed by amplifier
APPLICATION: PLANTS & MACHINES | FOOD & BEVERAGES
VA-244 (4 switching outputs)
Four switching points
- Four switching points NO / NC programable
- Measured value displayed by amplifier
APPLICATION: PLANTS & MACHINES | FOOD & BEVERAGES
CAT-PT (with temperature sensor)
Level and temperature monitoring
with just one unit
- Temperature range 0...70°C
- Probe rod max. 1000 mm length
- Accuracy +/- 1 °C
- Compatible with different amplifiers
APPLICATION: PLANTS & MACHINES | FOOD & BEVERAGES
LightCAP (With LED illumination)
Equipped with LEDs located in the thread socket to illuminate the tank or container
- Capacitive level detection of the medium
- Illumination of the tank up to 3000 mm deep
- Sensor material selectable according to medium
- Clearly visible LED Display
APPLICATION: PLANTS & MACHINES | FOOD & BEVERAGES
CAT-PT-LightCAP
All advantages combined in one device: reliable, flexible and robust
- Reliable level and temperature monitoring
- LED Illumination of the tank up to 3000 mm
- Separate M8-connector for the temperature sensor
- Compatible with different amplifiers
APPLICATION: PLANTS & MACHINES | FOOD & BEVERAGES
![[Translate to Englisch:] CAPTRON ORCA Füllstandsonde IO-Link fähig](/fileadmin/_processed_/a/7/csm_CAPTRON_compact-probes_ORCA_001_c2fb3de905.png "csm_CAPTRON_compact-probes_ORCA_001_c2fb3de905")

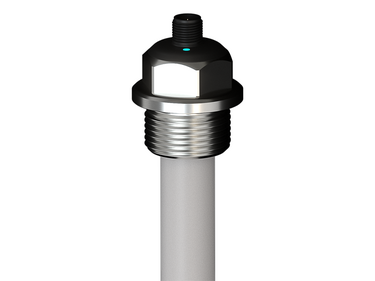

ORCA (with IO-Link)
Precise level measurement in tight installation space due to compact probe head
- For high-precision measurements of thin to viscous adhesives as well as (synthetic) resins and oils
- Flexible use with or without IO-Link
- PTFE probe rod
- Fast and easy installation
APPLICATION: PLANTS & MACHINES | DISPENSING
![[Translate to Englisch:] CAPTRON CALIS Füllstandsonde mit kontaktloser Messung](/fileadmin/_processed_/1/8/csm_CAPTRON_LevelSensor_CALIS_web_795ce29c44.jpg "csm_CAPTRON_LevelSensor_CALIS_web_795ce29c44")

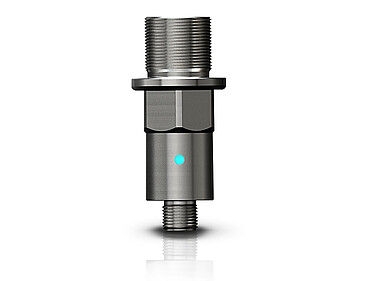

CALIS (Robust and suitable for railroads)
Non-contact, continuous level measurement in harsh environmental conditions
- Developed for sand level measurement in rail vehicles (heavy and light rail) and proven in long-term tests. As a flexible limit switch or for continuous level measurement.
- Complies with the current standards for use in rail (EN 50155, EN 50121, EN 45545 etc.)
- Configurable with IO-link communication for flexible use in harsh environments outside of rail applications
- No regular, manual checking of the sandboxes by the train driver required and refilling as required possible
- Level measurement without adjustment of the sensor to the material and container.
- Distance measurement with optical ToF measuring method
