The capacitive two-hand safety controls in the SC4 series allows heavy industrial automation machinery and systems to be operated safely and without pressure and meets the very highest safety requirements of Category 4 under PL e to DIN EN ISO 13849-1.
CAPTRON supplies the SC4 series in Basic, Protect and Complete sets. The additional safety elements such as the Protector or the control desk also provide protection from outside interference and satisfy all the requirements for two-hand safety controls under DIN EN 13851.
Capacitive two-hand safety controls are specially designed for everyday, ergonomic long-term use and deliver extreme durability, reliability and robustness. The touch area has a diameter of 63 mm making it very large and easy to use. The user receives optical feedback through 8 red and 8 green LEDs.
CAPTRON can provide individual advice to enable you to choose the perfect product for the required specifications and applications. Contact us: CAPTRON service.
Two-hand control SC4
Description
Downloads
Service and Support
Important properties
- 100% water and oilproof
Protection class IP69K, fully sealed in casting resin - Extremely long service life
Over 100 million switching cycles - Impact-resistant – robust
Protection rating IK08, cannot be destroyed by lighter flames and blows to the switch surface - Foreign object check
Recognises obstructions - Contamination control
Recognises contamination - Touch sensor
Maximum ease of use, effortless, no strain on wrists - Safety certification
According to PL e (DIN EN ISO 13849-1)
Products
SCA4 (Switch A)
safeCAP switch A separate
- Ø 63 mm switch surface
- Mounting Ø 45 - 59 mm
- Compatibe with mit MCR-225 safety relay
- Type III C certified according to DIN EN 13851
APPLICATION: PUNCHING | PRESSES
SCB4 (Switch B)
safeCAP switch B separate
- Ø 63 mm switch surface
- Mounting Ø 45 - 59 mm
- Compatibe with MCR-225 safety relay
- Type III C certified according to DIN EN 13851
APPLICATION: PUNCHING | PRESSES
MCR-225 (Relay)
Relay for SC4 and SC30 (Dual Channel)
- Inputs for SCA4 + SCB4; SC30 (Dual Channel)
- Output: 2 makers and 1 breaker
- Monitoring of external contactors for contact multiplication and reinforcement
via feedback loop Y1 - Y2 - Over-current and short-circuit proof
APPLICATION: PUNCHING | PRESSES
SC4 SET Basic
safeCAP switch A and B and safety relais
- Two switches (SCA4, SCB4)
- Safety relay MCR-225
- Two connector cables (LKW-SCA, LKW-SCB)
APPLICATION: PUNCHING | PRESSES
SC4 SET Complete

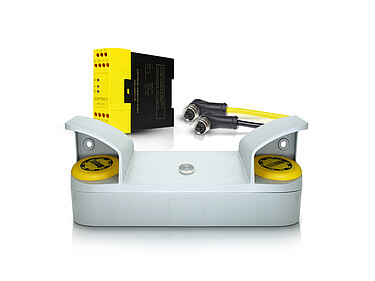

SC4 Set with plastic control panel
- Two switches (SCA4, SCB4)
- Safety relay MCR-225
- Two connector cables (LKW-SCA, LKW-SCB)
- Control panel made of plastic (Optional: aluminum)
APPLICATION: PUNCHING | PRESSES
SC4 SET Protect
SC4 Set with plastic protectors
- Two switches (SCA4, SCB4)
- Safety relay MCR-225
- Two connection cables (LKW-SCA, LKW-SCB)
- Two protectors SCP-4
APPLICATION: STAMPING | PRESSING
